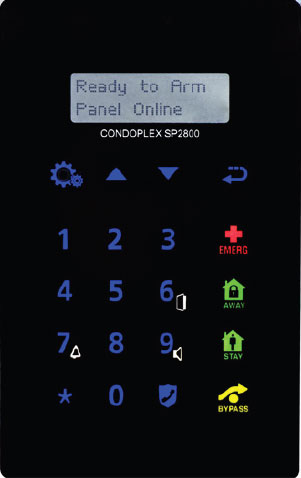

SP2800
Suite Security Panel
The SP 2800 panel is designed to give your suites a chic, ultramodern look. The technology deployed in this suite panel parallels that found in today’s smart phones, namely, Cap-Touch technology, light-pipe backlighting and dead fronted face. The keypad is mounted on floating glass and has crisp bright characters that only appear when the resident is in proximity to the keypad or when the panel requires the attention of the resident. Otherwise the dead fronting makes the panel less obtrusive when not in use. Smart Power logic allows the suite panel to operate at less then 25ma even with the LCD on.
A 2 line by 16 character LCD provides clear instruction, text messaging and easy to use menus. Four Status indicators provide Arming, Alarm, Message and Zone By-pass information.
Dedicated keys for calling Security and EMERGENCY are included to summon immediate assistance. The open face design ensures easy access to buttons and removes the clutter of door covers.

- Floating Glass with Backlight
- Cap-Touch Keypad (no mechanical parts)
- 4 Status LEDs
- 2 line by 16 Character LCD Display
- Text Messaging Protocol
- 4 Programmable Wired Zones / 8 Rf Zones (Optional)
- Door Bell / Chime Functions
- Built-in Diagnostics
- Internet Accessible Features (Requires Monitoring Plan)
Enhancements
Programmable:
New features may be added at any time as firmware changes can be installed over the internet.
Web Portal:
Residents may purchase optional services to arm/disarm, view activity, enter/remove user codes and receive email notifications.
Privacy Mode:
Permits the Resident to deny access into their suite from the elevator.
Party Mode:
Allows visitors to enter “en mass” into the suite without requiring the resident or guard to grant individual access.
Check-in:
Will signal a resident/patient to check-in within a given time period. If the resident does not “check-in” an alarm will sound at the guard station or remote monitoring centre.
Suite Occupancy:
Provides an automated method of check-in by determining if there is motion within the suite over a duration of time. If no movement is detected an alarm will sound at the guard station or remote monitoring centre*
Remote Rf Functionality:
With the optional Rf receiver installed you may arm/disarm your suite, summon emergency assistance with two-way audio and… will monitor Water/NG leaks and control automated valves. *
Environmental Security:
Heat and Humidity sensors may be Monitored with alarm set points (requires optional external receiver).
Special 1 Touch Features
- Call Security: Summons building security staff
- Emergency: Summons medical attention
- STAY: Arms perimeter zones only and removes delay from doors
- BYPASS: Permits temporary bypass of zone until repair
Optional RF Module
Supports up to 16 transmitters
The transmitters may control the following panel functions:
- Call Security, Emergency. Arm, Disarm, STAY
Optional
Internal Rf Module for:
- Pendants: Multi-button, Water-proof Pendant
- Sensors: Water, Door, Window, Universal Transmitter
