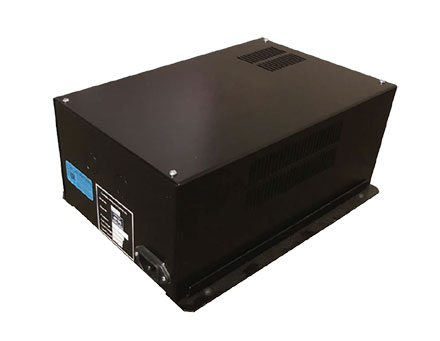

PS1410IP
Uninterruptible Power Supply
The PS1410IP is a designed as a smart, networked connected Uninterruptible Power Supply (UPS). Having a built-in Web interface, this product provides for complete configuration, power adjustment, monitoring and status reporting to any browser equipped device (PC’s, Laptops, Tablets, etc.). The UPS may be accessed on the LAN or with an internet connection to offer complete remote control and monitoring. In cases whereby a network connection is not possible, a laptop may be temporarily connected for configuration to the product’s ethernet port, then removed for standalone operation.
If operated with a Condoplex Sever, the UPS will self-register and provide status information and alerts to the guard screen. More detailed information and real-time adjustments may be made from the Server configuration screens.
Construction
- Small Compact Design
- Direct to Wall or Shelf Mount
- Indicator Lights
Connectivity / User Interface
- Ethernet Web based User Interface
- Standalone or Networked Operation
- Auto-Registration to Condoplex Servers
- REMOTE Startup/Shutdown/Voltage Output Setting
- Unique and controllable locator LED and confirmation Switch
Reliability / Servicing Features
- Battery Protection: Fused and Auto-shutoff to prevent over drain
- Scheduled Battery Testing and Remaining life on loss of AC
- Thermal, Short, Reverse Lead, Battery Short Shutdown
Product Operation and Features:
When connected to a 120 A/C line, the UPS will signal that it is operating from A/C power and charge the external battery pack (not included). The battery pack may be sized according to load and length of time that you wish to maintain backup power to your system. The UPS will monitor the state of your battery pack and indicate when it should be replaced. UPS determines battery charge state and applies a deep (STAGE 1) or trickle charge (STAGE 2) to improve charging capacity and battery longevity. There is also a data field where you may enter the installation date of the battery pack.
Should the A/C power fail, an LED status indicator and the browser software will provide notification and the UPS will now operate form the battery pack. The UPS will maintain the selected voltage, independent of the battery decay curve. This means if you require a 14 Volt setting to account for line resistance, it will be maintained. The PS1410IP will shut the power down, when it determines any further output will cause irreparable damage to the batteries. Under these circumstances, the UPS will go into a standby mode, where it can still be accessed for technicians to collect diagnostic information.
